Kubernetes Fundamentals & Theory
Kubernetes Architectuur Deep Dive
Control Plane (Master Nodes)

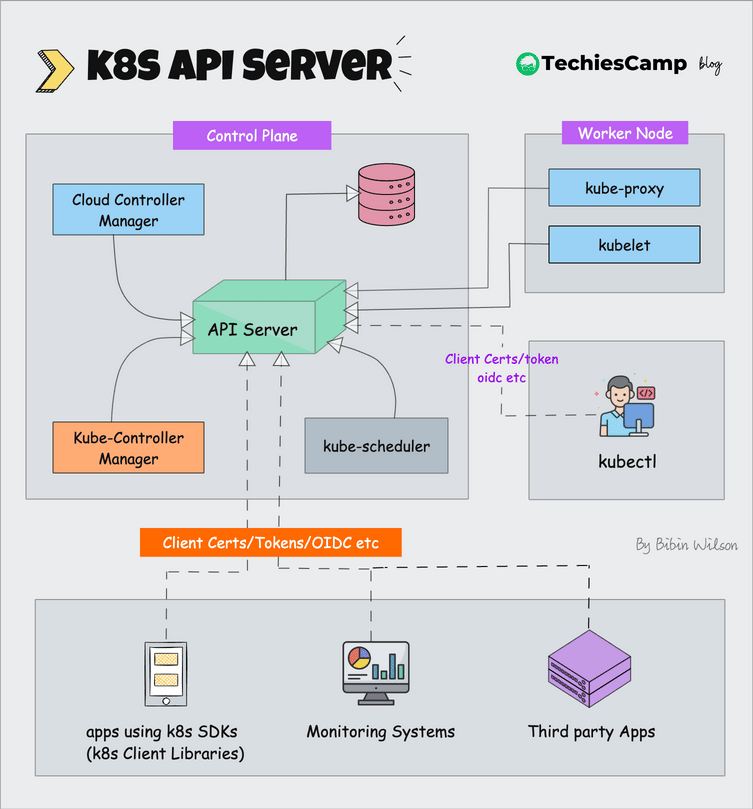

API Server (kube-apiserver)
┌─────────────────┐
│ kubectl │ ──┐
│ Dashboard │ │
│ Applications │ │ HTTPS/REST API
└─────────────────┘ │
▼
┌─────────────────────────────────────┐
│ API Server │
│ - Authentication & Authorization │
│ - REST API endpoint │
│ - Request validation │
│ - etcd communication │
└─────────────────────────────────────┘
Functionaliteiten:
- 🔐 Authentication: Wie mag toegang?
- 🛡️ Authorization: Wat mag je doen?
- ✅ Validation: Is de request geldig?
- 💾 Persistence: Schrijf naar etcd
etcd - Cluster Database
┌─────────────────────────────────────┐
│ etcd │
│ - Cluster state storage │
│ - Configuration data │
│ - Secrets & ConfigMaps │
│ - Service discovery info │
└─────────────────────────────────────┘
Wat wordt opgeslagen:
- Cluster configuratie en status
- Alle Kubernetes objecten (pods, services, etc.)
- Network policies en security policies
- Secrets en configuration data
Scheduler (kube-scheduler)
┌─────────────────────────────────────┐
│ Scheduler │
│ - Pod placement decisions │
│ - Resource requirements │
│ - Node capacity evaluation │
│ - Affinity/Anti-affinity rules │
└─────────────────────────────────────┘
│
▼
┌─────────────────────────────────────┐
│ Nodes │
│ Node 1: 2 CPU, 4GB RAM available │
│ Node 2: 4 CPU, 8GB RAM available │
│ Node 3: 1 CPU, 2GB RAM available │
└─────────────────────────────────────┘
Controller Manager (kube-controller-manager)
┌─────────────────────────────────────┐
│ Controller Manager │
│ ┌─────────────────────────────────┐│
│ │ Deployment Controller ││
│ │ ReplicaSet Controller ││
│ │ Node Controller ││
│ │ Service Controller ││
│ │ Endpoint Controller ││
│ └─────────────────────────────────┘│
└─────────────────────────────────────┘
Worker Nodes (Data Plane)
kubelet - Node Agent
┌─────────────────────────────────────┐
│ kubelet │
│ - Pod lifecycle management │
│ - Container runtime communication │
│ - Node status reporting │
│ - Health checks execution │
└─────────────────────────────────────┘
│
▼
┌─────────────────────────────────────┐
│ Container Runtime │
│ - Docker/containerd/CRI-O │
│ - Image pulling & management │
│ - Container execution │
└─────────────────────────────────────┘
kube-proxy - Network Proxy
┌─────────────────────────────────────┐
│ kube-proxy │
│ - Service load balancing │
│ - Network rules management │
│ - iptables/IPVS configuration │
│ - ClusterIP implementation │
└─────────────────────────────────────┘
Core Kubernetes Objects
Pods - Smallest Deployable Unit
Pod Anatomie
apiVersion: v1
kind: Pod
metadata:
name: nginx-pod
labels:
app: nginx
tier: frontend
annotations:
description: "Simple nginx web server"
spec:
containers:
- name: nginx
image: nginx:1.21
ports:
- containerPort: 80
name: http
resources:
requests:
memory: "64Mi"
cpu: "250m"
limits:
memory: "128Mi"
cpu: "500m"
env:
- name: ENV
value: "production"
- name: DATABASE_URL
valueFrom:
secretKeyRef:
name: app-secrets
key: database-url
volumeMounts:
- name: config-volume
mountPath: /etc/nginx/nginx.conf
subPath: nginx.conf
livenessProbe:
httpGet:
path: /
port: 80
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /
port: 80
initialDelaySeconds: 5
periodSeconds: 5
volumes:
- name: config-volume
configMap:
name: nginx-config
restartPolicy: Always
nodeSelector:
disktype: ssd
Multi-Container Pod Example
apiVersion: v1
kind: Pod
metadata:
name: web-pod
spec:
containers:
# Main application container
- name: web-app
image: nginx:1.21
ports:
- containerPort: 80
volumeMounts:
- name: shared-data
mountPath: /usr/share/nginx/html
# Sidecar container for log processing
- name: log-processor
image: busybox
command: ["sh", "-c"]
args:
- while true; do
echo "$(date): Processing logs..." >> /shared/logs/app.log;
sleep 60;
done
volumeMounts:
- name: shared-data
mountPath: /shared
# Init container for setup
initContainers:
- name: init-setup
image: busybox
command: ["sh", "-c"]
args:
- echo "Initializing application..." > /shared/logs/init.log
volumeMounts:
- name: shared-data
mountPath: /shared
volumes:
- name: shared-data
emptyDir: {}
Services - Network Abstraction
ClusterIP Service (Default)
apiVersion: v1
kind: Service
metadata:
name: nginx-clusterip
spec:
type: ClusterIP # Internal cluster access only
ports:
- port: 80 # Service port
targetPort: 80 # Container port
protocol: TCP
selector:
app: nginx
NodePort Service
apiVersion: v1
kind: Service
metadata:
name: nginx-nodeport
spec:
type: NodePort
ports:
- port: 80
targetPort: 80
nodePort: 30080 # External access via <NodeIP>:30080
selector:
app: nginx
LoadBalancer Service
apiVersion: v1
kind: Service
metadata:
name: nginx-loadbalancer
spec:
type: LoadBalancer
ports:
- port: 80
targetPort: 80
selector:
app: nginx
# Cloud provider will provision external load balancer
Headless Service
apiVersion: v1
kind: Service
metadata:
name: nginx-headless
spec:
clusterIP: None # No cluster IP assigned
ports:
- port: 80
selector:
app: nginx
# Returns individual Pod IPs instead of service IP
Deployments - Declarative Pod Management
Deployment Anatomie
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
labels:
app: nginx
spec:
replicas: 3
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.21
ports:
- containerPort: 80
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
maxSurge: 1
Rolling Update Process
Initial State (3 replicas):
[Pod1] [Pod2] [Pod3]
Rolling Update to new image:
[Pod1] [Pod2] [Pod3] [Pod4-new] ← Start new pod
[Pod1] [Pod2-new] [Pod3] [Pod4-new] ← Replace old pod
[Pod1-new] [Pod2-new] [Pod3] [Pod4-new] ← Replace old pod
[Pod1-new] [Pod2-new] [Pod3-new] ← Final state (remove extra)
ConfigMaps - Configuration Data
ConfigMap Creation
apiVersion: v1
kind: ConfigMap
metadata:
name: app-config
data:
# Key-value pairs
database_host: "mysql.default.svc.cluster.local"
database_port: "3306"
log_level: "INFO"
# File-like keys
nginx.conf: |
server {
listen 80;
server_name localhost;
location / {
root /usr/share/nginx/html;
index index.html;
}
location /api {
proxy_pass http://backend:3000;
}
}
application.properties: |
server.port=8080
spring.datasource.url=jdbc:mysql://mysql:3306/mydb
spring.datasource.username=${DB_USER}
spring.datasource.password=${DB_PASSWORD}
ConfigMap Usage in Pod
apiVersion: v1
kind: Pod
metadata:
name: app-pod
spec:
containers:
- name: app
image: myapp:latest
# Environment variables from ConfigMap
envFrom:
- configMapRef:
name: app-config
# Specific environment variables
env:
- name: DATABASE_HOST
valueFrom:
configMapKeyRef:
name: app-config
key: database_host
# Mount as files
volumeMounts:
- name: config-volume
mountPath: /etc/nginx
- name: app-config-volume
mountPath: /app/config
volumes:
- name: config-volume
configMap:
name: app-config
items:
- key: nginx.conf
path: nginx.conf
- name: app-config-volume
configMap:
name: app-config
items:
- key: application.properties
path: application.properties
Secrets - Sensitive Data
Secret Types
# Generic Secret
apiVersion: v1
kind: Secret
metadata:
name: app-secrets
type: Opaque
data:
username: YWRtaW4= # base64 encoded 'admin'
password: MWYyZDFlMmU= # base64 encoded '1f2d1e2e'
---
# TLS Secret
apiVersion: v1
kind: Secret
metadata:
name: tls-secret
type: kubernetes.io/tls
data:
tls.crt: LS0tLS1CRUdJTi... # base64 encoded certificate
tls.key: LS0tLS1CRUdJTi... # base64 encoded private key
---
# Docker Registry Secret
apiVersion: v1
kind: Secret
metadata:
name: docker-registry-secret
type: kubernetes.io/dockerconfigjson
data:
.dockerconfigjson: eyJhdXRocyI... # base64 encoded docker config
Secret Usage
apiVersion: v1
kind: Pod
metadata:
name: secret-test-pod
spec:
containers:
- name: app
image: myapp:latest
env:
# Single secret value
- name: DB_PASSWORD
valueFrom:
secretKeyRef:
name: app-secrets
key: password
# All secret values as env vars
envFrom:
- secretRef:
name: app-secrets
# Mount secrets as files
volumeMounts:
- name: secret-volume
mountPath: /etc/secrets
readOnly: true
volumes:
- name: secret-volume
secret:
secretName: app-secrets
# Use docker registry secret
imagePullSecrets:
- name: docker-registry-secret
Namespaces - Resource Isolation
Namespace Creation
apiVersion: v1
kind: Namespace
metadata:
name: development
labels:
name: development
environment: dev
---
apiVersion: v1
kind: Namespace
metadata:
name: production
labels:
name: production
environment: prod
Resource Quotas per Namespace
apiVersion: v1
kind: ResourceQuota
metadata:
name: dev-quota
namespace: development
spec:
hard:
requests.cpu: "4"
requests.memory: 8Gi
limits.cpu: "8"
limits.memory: 16Gi
pods: "10"
persistentvolumeclaims: "4"
services: "5"
secrets: "10"
configmaps: "10"
Labels en Selectors
Label Strategy
Recommended Labels
metadata:
labels:
# Application identification
app.kubernetes.io/name: nginx
app.kubernetes.io/instance: nginx-prod
app.kubernetes.io/version: "1.21"
app.kubernetes.io/component: web-server
app.kubernetes.io/part-of: ecommerce-platform
app.kubernetes.io/managed-by: helm
# Environment and tier
environment: production
tier: frontend
# Custom business labels
team: platform
cost-center: engineering
backup-policy: daily
Selector Examples
# Get pods by single label
kubectl get pods -l app=nginx
# Multiple labels (AND)
kubectl get pods -l app=nginx,environment=production
# Set-based selectors
kubectl get pods -l 'environment in (production,staging)'
kubectl get pods -l 'tier notin (database)'
kubectl get pods -l version
# Label nodes for scheduling
kubectl label nodes node-1 disktype=ssd
kubectl label nodes node-2 instance-type=memory-optimized
Advanced Selectors
# In Deployment
spec:
selector:
matchLabels:
app: nginx
matchExpressions:
- key: tier
operator: In
values: ["frontend", "web"]
- key: environment
operator: NotIn
values: ["development"]
Three-Tier Application Deployment
Complete E-commerce Platform
Tier 1: Frontend (React/Nginx)
# frontend-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: frontend-config
namespace: ecommerce
data:
nginx.conf: |
server {
listen 80;
server_name localhost;
# Serve React static files
location / {
root /usr/share/nginx/html;
try_files $uri $uri/ /index.html;
}
# Proxy API calls to backend
location /api/ {
proxy_pass http://backend:3000/;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
}
# Health check endpoint
location /health {
access_log off;
return 200 "healthy\n";
add_header Content-Type text/plain;
}
}
---
# frontend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: frontend
namespace: ecommerce
labels:
app.kubernetes.io/name: frontend
app.kubernetes.io/component: web
tier: frontend
spec:
replicas: 3
selector:
matchLabels:
app: frontend
template:
metadata:
labels:
app: frontend
tier: frontend
spec:
containers:
- name: nginx
image: nginx:1.21-alpine
ports:
- containerPort: 80
volumeMounts:
- name: nginx-config
mountPath: /etc/nginx/conf.d
- name: static-content
mountPath: /usr/share/nginx/html
resources:
requests:
memory: "64Mi"
cpu: "100m"
limits:
memory: "128Mi"
cpu: "200m"
livenessProbe:
httpGet:
path: /health
port: 80
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /health
port: 80
initialDelaySeconds: 5
periodSeconds: 5
# Init container to fetch static content
initContainers:
- name: content-fetcher
image: busybox:1.35
command: ["sh", "-c"]
args:
- |
echo "<!DOCTYPE html>
<html><head><title>E-commerce Frontend</title></head>
<body><h1>Welcome to our E-commerce Platform</h1>
<p>Frontend is running successfully!</p></body></html>" > /static/index.html
volumeMounts:
- name: static-content
mountPath: /static
volumes:
- name: nginx-config
configMap:
name: frontend-config
- name: static-content
emptyDir: {}
---
# frontend-service.yaml
apiVersion: v1
kind: Service
metadata:
name: frontend
namespace: ecommerce
labels:
app: frontend
spec:
type: LoadBalancer
ports:
- port: 80
targetPort: 80
name: http
selector:
app: frontend
Tier 2: Backend (Node.js API)
# backend-secrets.yaml
apiVersion: v1
kind: Secret
metadata:
name: backend-secrets
namespace: ecommerce
type: Opaque
data:
database-url: bW9uZ29kYjovL21vbmdvZGI6MjcwMTcvZWNvbW1lcmNl # mongodb://mongodb:27017/ecommerce
jwt-secret: bXlfc3VwZXJfc2VjcmV0X2p3dF9rZXkxMjM= # my_super_secret_jwt_key123
redis-url: cmVkaXM6Ly9yZWRpczozNjM3 # redis://redis:6379
---
# backend-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: backend-config
namespace: ecommerce
data:
NODE_ENV: "production"
LOG_LEVEL: "info"
PORT: "3000"
CORS_ORIGIN: "http://frontend"
---
# backend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: backend
namespace: ecommerce
labels:
app.kubernetes.io/name: backend
app.kubernetes.io/component: api
tier: backend
spec:
replicas: 2
selector:
matchLabels:
app: backend
template:
metadata:
labels:
app: backend
tier: backend
spec:
containers:
- name: api
image: node:18-alpine
command: ["sh", "-c"]
args:
- |
cat > /app/server.js << 'EOF'
const express = require('express');
const app = express();
const port = process.env.PORT || 3000;
app.use(express.json());
// Health check
app.get('/health', (req, res) => {
res.json({ status: 'healthy', timestamp: new Date().toISOString() });
});
// API routes
app.get('/products', (req, res) => {
res.json([
{ id: 1, name: 'Product 1', price: 29.99 },
{ id: 2, name: 'Product 2', price: 39.99 }
]);
});
app.get('/users', (req, res) => {
res.json({ message: 'Users endpoint', database: process.env.DATABASE_URL });
});
app.listen(port, () => {
console.log(`Backend API running on port ${port}`);
});
EOF
cd /app && npm init -y && npm install express
node server.js
ports:
- containerPort: 3000
env:
- name: DATABASE_URL
valueFrom:
secretKeyRef:
name: backend-secrets
key: database-url
- name: JWT_SECRET
valueFrom:
secretKeyRef:
name: backend-secrets
key: jwt-secret
envFrom:
- configMapRef:
name: backend-config
resources:
requests:
memory: "128Mi"
cpu: "200m"
limits:
memory: "256Mi"
cpu: "500m"
livenessProbe:
httpGet:
path: /health
port: 3000
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /health
port: 3000
initialDelaySeconds: 5
periodSeconds: 5
---
# backend-service.yaml
apiVersion: v1
kind: Service
metadata:
name: backend
namespace: ecommerce
labels:
app: backend
spec:
ports:
- port: 3000
targetPort: 3000
name: http
selector:
app: backend
Tier 3: Database (MongoDB)
# mongodb-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: mongodb-pvc
namespace: ecommerce
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
---
# mongodb-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: mongodb
namespace: ecommerce
labels:
app.kubernetes.io/name: mongodb
app.kubernetes.io/component: database
tier: database
spec:
replicas: 1
selector:
matchLabels:
app: mongodb
template:
metadata:
labels:
app: mongodb
tier: database
spec:
containers:
- name: mongodb
image: mongo:5.0
ports:
- containerPort: 27017
env:
- name: MONGO_INITDB_ROOT_USERNAME
value: "admin"
- name: MONGO_INITDB_ROOT_PASSWORD
value: "password123"
- name: MONGO_INITDB_DATABASE
value: "ecommerce"
volumeMounts:
- name: mongodb-storage
mountPath: /data/db
- name: mongodb-init
mountPath: /docker-entrypoint-initdb.d
resources:
requests:
memory: "256Mi"
cpu: "200m"
limits:
memory: "512Mi"
cpu: "500m"
livenessProbe:
exec:
command:
- mongo
- --eval
- "db.adminCommand('ping')"
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
exec:
command:
- mongo
- --eval
- "db.adminCommand('ping')"
initialDelaySeconds: 5
periodSeconds: 5
volumes:
- name: mongodb-storage
persistentVolumeClaim:
claimName: mongodb-pvc
- name: mongodb-init
configMap:
name: mongodb-init-scripts
---
# mongodb-init-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: mongodb-init-scripts
namespace: ecommerce
data:
init.js: |
db = db.getSiblingDB('ecommerce');
// Create collections
db.createCollection('products');
db.createCollection('users');
db.createCollection('orders');
// Insert sample data
db.products.insertMany([
{ name: 'Laptop', price: 999.99, category: 'Electronics', stock: 50 },
{ name: 'Phone', price: 599.99, category: 'Electronics', stock: 100 },
{ name: 'Book', price: 19.99, category: 'Books', stock: 200 }
]);
db.users.insertMany([
{ username: 'admin', email: 'admin@example.com', role: 'admin' },
{ username: 'user1', email: 'user1@example.com', role: 'customer' }
]);
print('Database initialized successfully');
---
# mongodb-service.yaml
apiVersion: v1
kind: Service
metadata:
name: mongodb
namespace: ecommerce
labels:
app: mongodb
spec:
ports:
- port: 27017
targetPort: 27017
name: mongodb
selector:
app: mongodb
clusterIP: None # Headless service
Deployment Script
#!/bin/bash
# deploy-ecommerce.sh
echo "🚀 Deploying E-commerce Platform..."
# Create namespace
kubectl create namespace ecommerce
# Deploy Tier 3: Database
echo "📊 Deploying MongoDB (Database Tier)..."
kubectl apply -f mongodb-pvc.yaml
kubectl apply -f mongodb-init-configmap.yaml
kubectl apply -f mongodb-deployment.yaml
kubectl apply -f mongodb-service.yaml
# Wait for MongoDB to be ready
echo "⏳ Waiting for MongoDB to be ready..."
kubectl wait --for=condition=ready pod -l app=mongodb -n ecommerce --timeout=300s
# Deploy Tier 2: Backend
echo "🔧 Deploying Backend API..."
kubectl apply -f backend-secrets.yaml
kubectl apply -f backend-configmap.yaml
kubectl apply -f backend-deployment.yaml
kubectl apply -f backend-service.yaml
# Wait for Backend to be ready
echo "⏳ Waiting for Backend to be ready..."
kubectl wait --for=condition=ready pod -l app=backend -n ecommerce --timeout=300s
# Deploy Tier 1: Frontend
echo "🌐 Deploying Frontend..."
kubectl apply -f frontend-configmap.yaml
kubectl apply -f frontend-deployment.yaml
kubectl apply -f frontend-service.yaml
# Wait for Frontend to be ready
echo "⏳ Waiting for Frontend to be ready..."
kubectl wait --for=condition=ready pod -l app=frontend -n ecommerce --timeout=300s
# Get external IP
echo "🎉 Deployment complete!"
echo "Frontend URL:"
kubectl get svc frontend -n ecommerce -o jsonpath='{.status.loadBalancer.ingress[0].ip}'
echo ""
# Show all resources
echo "📋 All resources:"
kubectl get all -n ecommerce
Testing en Validation
Connectivity Tests
# Test database connectivity
kubectl exec -it deployment/backend -n ecommerce -- sh -c "
wget -qO- http://mongodb:27017 || echo 'MongoDB connection test'
"
# Test backend API
kubectl exec -it deployment/frontend -n ecommerce -- sh -c "
wget -qO- http://backend:3000/health
"
# Test frontend
FRONTEND_IP=$(kubectl get svc frontend -n ecommerce -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
curl http://$FRONTEND_IP/health
Service Discovery Verification
# DNS resolution tests
kubectl exec -it deployment/backend -n ecommerce -- nslookup mongodb
kubectl exec -it deployment/frontend -n ecommerce -- nslookup backend
# Service endpoint verification
kubectl get endpoints -n ecommerce
Monitoring en Troubleshooting
Resource Monitoring
# Resource usage per namespace
kubectl top pods -n ecommerce
kubectl top nodes
# Describe problematic pods
kubectl describe pod <pod-name> -n ecommerce
# Check events
kubectl get events -n ecommerce --sort-by=.metadata.creationTimestamp
Log Analysis
# Application logs
kubectl logs -f deployment/frontend -n ecommerce
kubectl logs -f deployment/backend -n ecommerce
kubectl logs -f deployment/mongodb -n ecommerce
# Previous container logs (if crashed)
kubectl logs deployment/backend -n ecommerce --previous
Network Troubleshooting
# Test pod-to-pod connectivity
kubectl exec -it deployment/frontend -n ecommerce -- nc -zv backend 3000
kubectl exec -it deployment/backend -n ecommerce -- nc -zv mongodb 27017
# Check service endpoints
kubectl get svc -n ecommerce -o wide
kubectl get endpoints -n ecommerce
Samenvatting
Kernconcepten Geleerd:
✅ Kubernetes Architectuur - Control plane en worker nodes
✅ Pod Lifecycle - Van creation tot termination
✅ Service Discovery - DNS-based service resolution
✅ Configuration Management - ConfigMaps en Secrets
✅ Multi-tier Deployment - Complete applicatie stack
✅ Resource Management - Requests, limits, quotas
✅ Health Checking - Liveness en readiness probes
✅ Storage - PersistentVolumes en PersistentVolumeClaims
Volgende Stappen:
In Les 8 gaan we lokale development:
- Minikube setup en configuratie
- Development workflows
- Hot reloading en debugging
- Advanced troubleshooting technieken
Best Practices:
- ✅ Gebruik labels consistent voor resource management
- ✅ Implement proper health checks
- ✅ Set resource limits om cluster stability te garanderen
- ✅ Use ConfigMaps voor configuration en Secrets voor gevoelige data
- ✅ Namespace isolation voor verschillende environments
- ✅ Monitor logs en metrics voor operational visibility
